AQA drink COOLER 80 CAS

Water dispensers for those who want to maximise the space on the top

Request more information
Article Number: 125591233
  • Ice bank system
  • Saving space on the counter
  • sturdy and functional design
Springe zu

Product Bene­fits

Product details

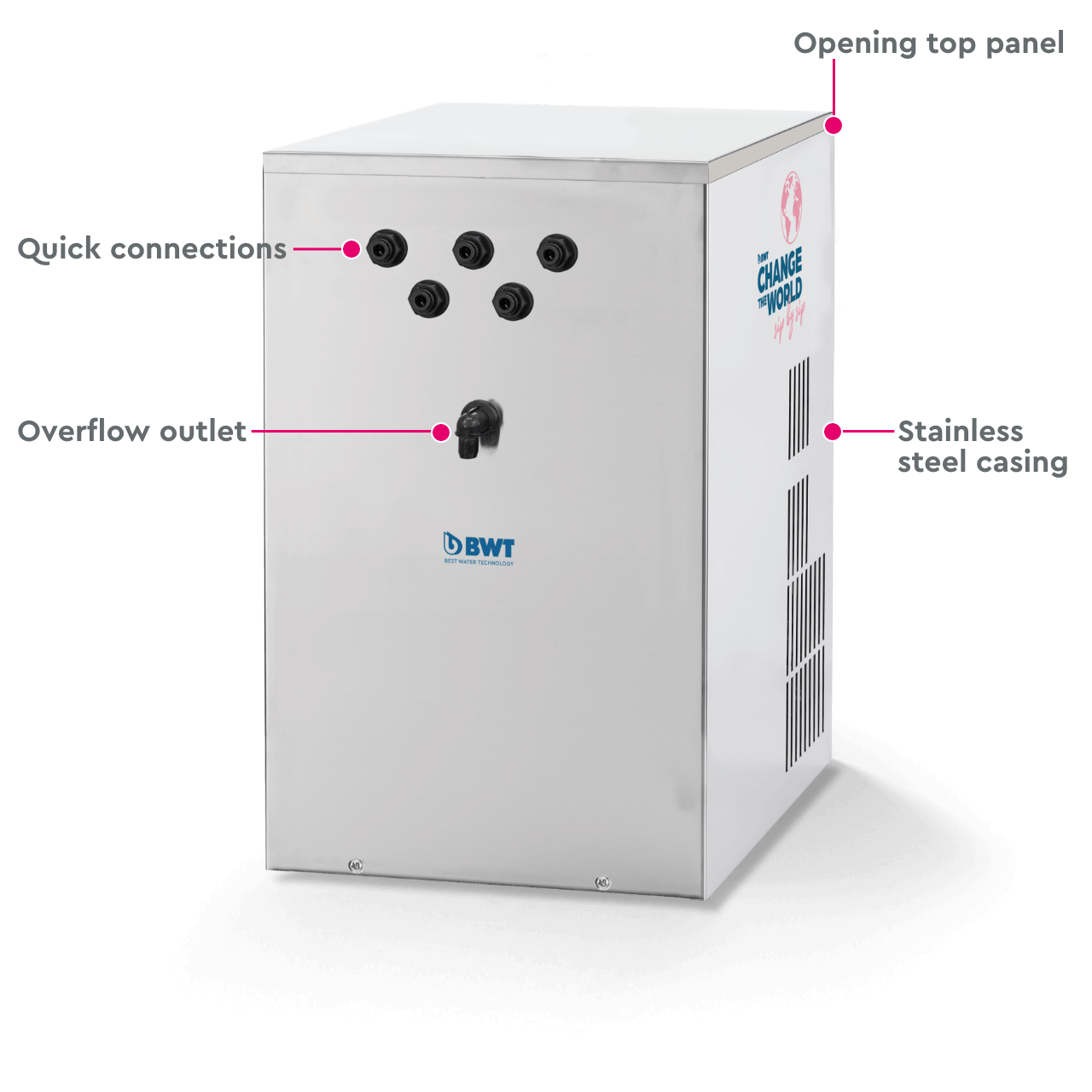

BWT AQA drink COOLER is the complete range of water dispensers that, thanks to their compact dimensions and the fact that they can be installed under the sink, leave you plenty of free space on the counter.
The small dimensions allow the dispensers to be easily positioned without impacting on the aesthetics of your venue. They fit inside the kitchen cabinets, together with the filter and CO2 cylinder, and they can be connected to the matching column and drip tray.
The AQA drink COOLER range includes a wide selection of professional water coolers, robust and reliable over time, which meet the highest quality standards for performance and product quality.

  • Ideal for bars, restaurants, canteens
  • 2 or 3 water options: ambient and cold or ambient, cold and sparkling
  • Capacity: 50 to 120 l/h (higher capacities available upon demand)

It’s possible to combine BWT’s AQA drink mineralization and filtration solutions, so that you have valuable water rich in valuable minerals. In addition, periodic disinfection and cleaning can be performed using BWT’s EasyCare system. The dispenser needs to be combined with one or more dispensing towers with taps.



AQA DRINK FILTRA­TION AND MINER­AL­IZA­TION FOR BWT WATER DISPENSERS

All BWT AQA drink filters refine your tap water in five filtra­tion stages. During this process, parti­cles, heavy metals (such as copper, lead and nickel), odour and other taste disturbing substances (such as chlo­rine) are reduced. This state-of-theart filtra­tion is just the prepa­ra­tion phase.

The real differ­ence is the patented BWT miner­al­iza­tion tech­nology. Local, filtered tap water, enriched by valu­able minerals such as magne­sium and zinc deliver perfect taste and help feel more balanced and resilient to stress. BWT makes tasty, locally-produced miner­al­ized drinking water. For You and Planet Blue.

Technical Details

  50 80 120
Item n° - WD 125591238 125591232 125591239 125591233 125591240  125591234
C - Cold  ✓  ✓  ✓  ✓  ✓  ✓
A - Ambient  ✓  ✓  ✓  ✓  ✓  ✓
S - Sparkling  - - -
H - Hot  -   -   -
Cooling capacity l/h (∆t=10°C) 50
 80  120
Number of people (approx.) 20/50
 50/80 80/120
Cooling tech­nology Ice bank
Cooling control -2 °C to +7 °C Ther­mo­stat
Recir­cu­la­tion pump/stirrer -  Optional Optional
Compressor power 185 W  245 W  380 W
Refrig­erant R290
Carbon­ator capacity 1,6 l  1,4 l 1,4 l
Power supply 230 V / 50-60 Hz
Maximum power consump­tion 220 W  300 W 500 W
Pump type Booster 220V 135 PSI Booster 220V 135 PSI   200 l/h motor 150 W
Ø water inlet pipe 8 mm
Ø CO2 inlet pipe 6 mm
Maximum CO2 inlet pres­sure 4 bar
Water inlet pres­sure (min./max.) 1,5 / 3,5 bar
Dimen­sions WD (WxDxH) mm 180x460x430  270x450x440 300x510x400
Weight kg (approx.) 18  21  25
Mate­rial of construc­tion Stain­less steel
Water selec­tion point To be combined with dispensing water
