Product Benefits

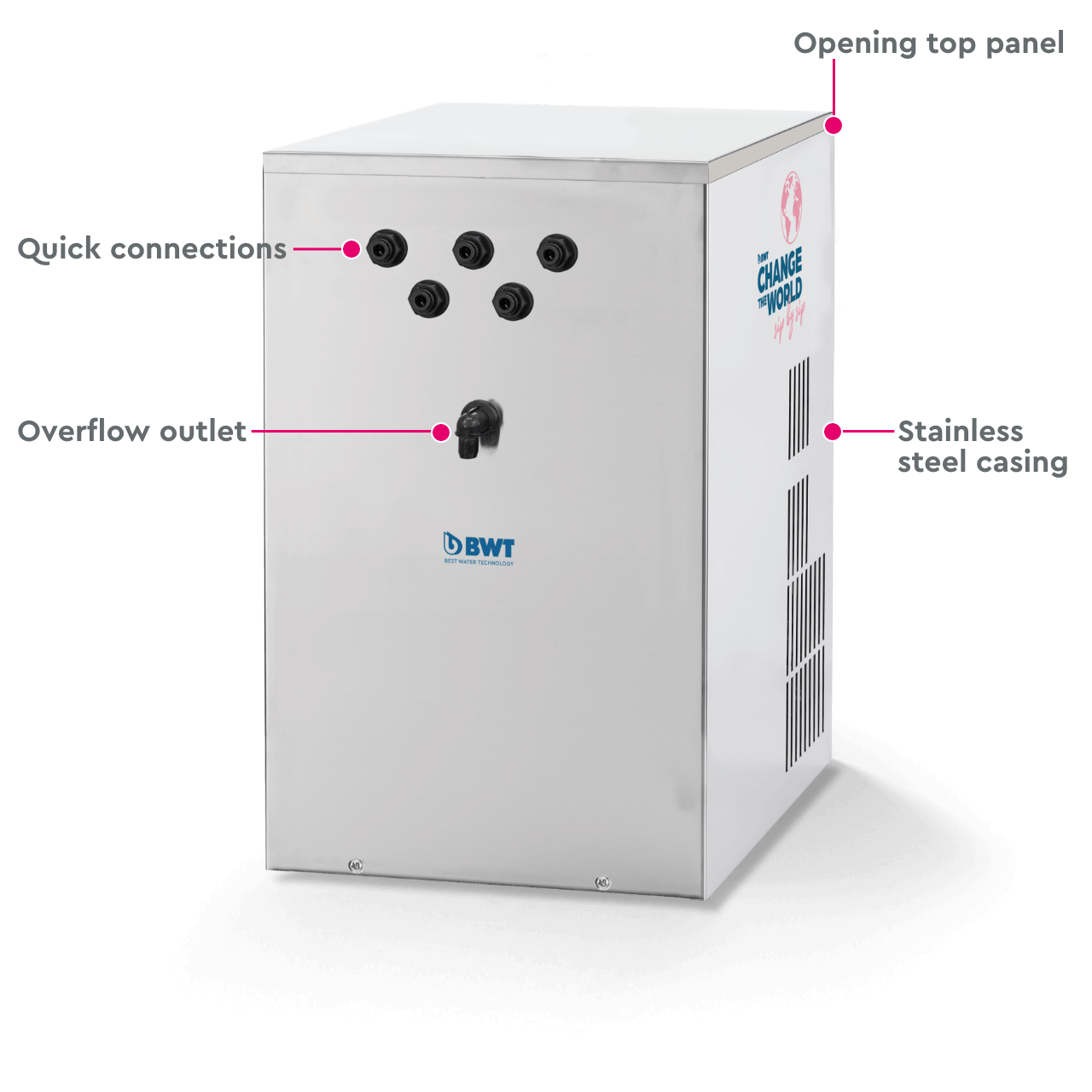

BWT AQA drink COOLER is the complete range of water dispensers that, thanks to their compact dimensions and the fact that they
can be installed under the sink, leave you plenty of free space on the counter.
The small dimensions allow the dispensers to be easily positioned without impacting on the aesthetics of your venue.
They fit inside the kitchen cabinets, together with the filter and CO2 cylinder, and they can be connected to the matching column
and drip tray.
The AQA drink COOLER range includes a wide selection of professional water coolers, robust and reliable over time, which meet the
highest quality standards for performance and product quality.
It’s possible to combine BWT’s AQA drink mineralization and filtration solutions, so that you have valuable water rich in valuable minerals. In addition, periodic disinfection and cleaning can be performed using BWT’s EasyCare system. The dispenser needs to be combined with one or more dispensing towers with taps.
AQA DRINK FILTRATION AND MINERALIZATION FOR BWT WATER DISPENSERS
All BWT AQA drink filters refine your tap water in five filtration stages. During this process, particles, heavy metals (such as copper, lead and nickel), odour and other taste disturbing substances (such as chlorine) are reduced. This state-of-theart filtration is just the preparation phase.
The real difference is the patented BWT mineralization technology. Local, filtered tap water, enriched by valuable minerals such as magnesium and zinc deliver perfect taste and help feel more balanced and resilient to stress. BWT makes tasty, locally-produced mineralized drinking water. For You and Planet Blue.
50 | 80 | 120 | ||||
Item n° - WD | 125591238 | 125591232 | 125591239 | 125591233 | 125591240 | 125591234 |
C - Cold | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
A - Ambient | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
S - Sparkling | - | ✓ | - | ✓ | - | ✓ |
H - Hot | - | - | - | |||
Cooling capacity l/h (∆t=10°C) | 50 |
80 | 120 | |||
Number of people (approx.) | 20/50 |
50/80 | 80/120 | |||
Cooling technology | Ice bank |
|||||
Cooling control | -2 °C to +7 °C Thermostat | |||||
Recirculation pump/stirrer | - | Optional | Optional | |||
Compressor power | 185 W | 245 W | 380 W | |||
Refrigerant | R290 | |||||
Carbonator capacity | 1,6 l | 1,4 l | 1,4 l | |||
Power supply | 230 V / 50-60 Hz | |||||
Maximum power consumption | 220 W | 300 W | 500 W | |||
Pump type | Booster 220V 135 PSI | Booster 220V 135 PSI | 200 l/h motor 150 W | |||
Ø water inlet pipe | 8 mm | |||||
Ø CO2 inlet pipe | 6 mm | |||||
Maximum CO2 inlet pressure | 4 bar | |||||
Water inlet pressure (min./max.) | 1,5 / 3,5 bar | |||||
Dimensions WD (WxDxH) mm | 180x460x430 | 270x450x440 | 300x510x400 | |||
Weight kg (approx.) | 18 | 21 | 25 | |||
Material of construction | Stainless steel | |||||
Water selection point | To be combined with dispensing water |
AQA drink COOLER | PDF, 135 Kb | Download | |
BWT AQA drink Mineralization and Filtration solutions | PDF, 2 Mb | Download |
