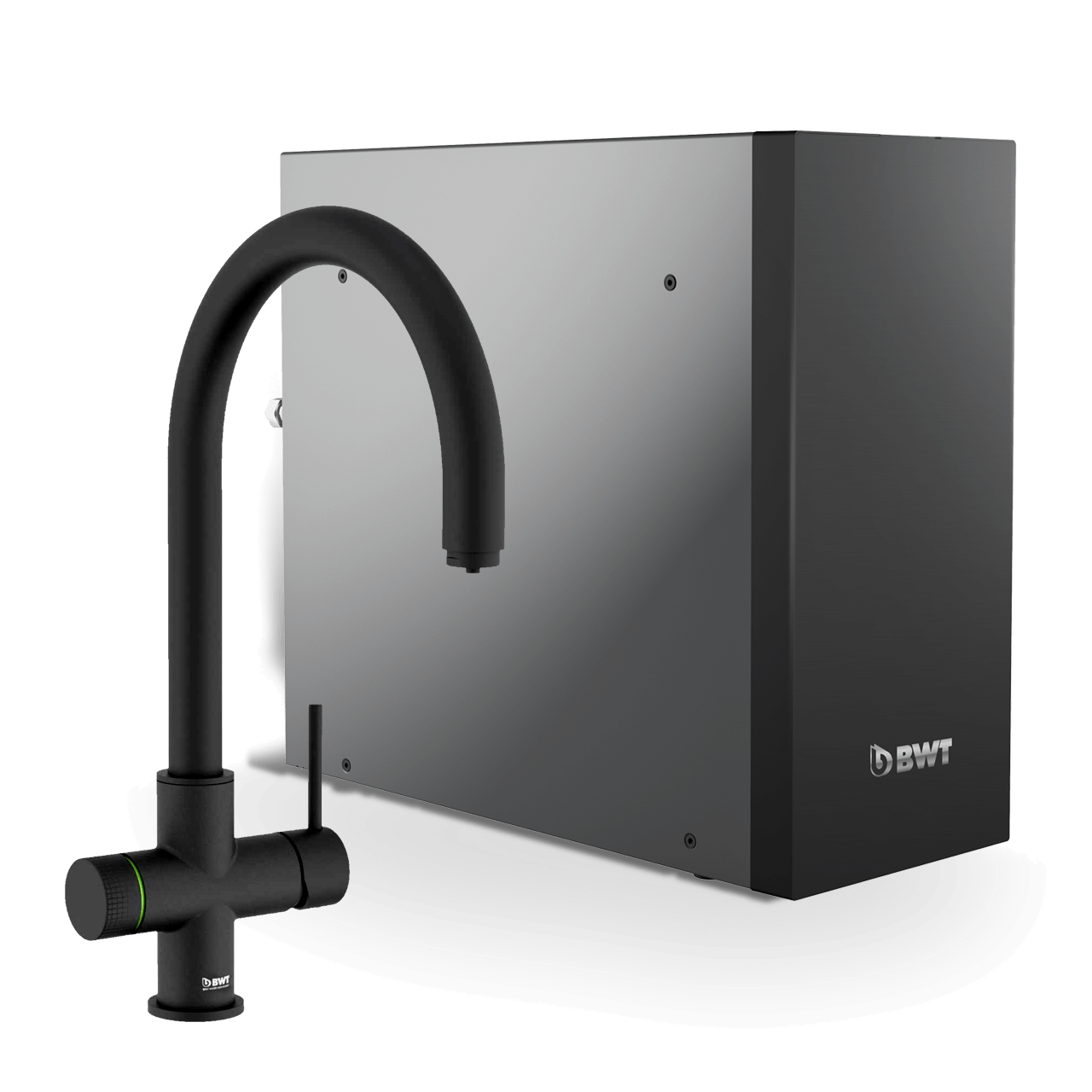

The AQA FUSIONE ALL@ONE allows settings and monitoring via app.
Experience the convenience of having filtered cold, hot, sparkling, and boiling water at your fingertips with our BWT AQA Fusion ALL@ONE and its dedicated mixer tap at home, in your office or in your restaurant or coffee bar.
No more waiting for water to boil to prepare your favourite beverages or meals. Our BWT AQA Fusion ALL@ONE is your ultimate kitchen companion at home and in your workplace. It is perfect for making tea or coffee, filling up pot to cook paste or other meals, and much more!
Safety is our top priority, that is why our AQA FUSION mixer tap features various essential safety components. It includes a childproof feature, push & turn activation and a convenient led indicator in different colours that shows which type of water is dispensed.
Perfectly filtered and reliable limescale protection. With the builtin BWT AQA Drink SOFT TASTE refine your tap water in five filtration stages. During this process, particles, heavy metals (such as copper, lead, and nickel), odour and other taste-disturbing substances (such as chlorine) are reduced. This state-of-the-art filtration is just the preparation phase. The filter will also protect your AQA FUSION ALL@ONE system against limescale deposits. The use of a RFID chip in the filter grants the use of the original BWT cartridge.
AQA DRINK FILTRATION AND MINERALIZATION FOR BWT WATER DISPENSERS
All BWT AQA drink filters refine your tap water in five filtration stages. During this process, particles, heavy metals (such as copper, lead and nickel), odour and other taste disturbing substances (such as chlorine) are reduced. This state-of-theart filtration is just the preparation phase.
The real difference is the patented BWT mineralization technology. Local, filtered tap water, enriched by valuable minerals such as magnesium and zinc deliver perfect taste and help feel more balanced and resilient to stress. BWT makes tasty, locally-produced mineralized drinking water. For You and Planet Blue.
Height | 440 mm |
Width | 200 mm |
Depth | 495 mm |
Net weight (empty) | 20 kg |
Full weight (filled) | approx. 27 kg |
System working pressure | 2 - 8 bar |
Minimum water pressure | 1 bar |
Maximum water pressure | 5 bar |
Standby loss | 14 W |
Flow rate (all water flows) | 2.0 l/m @ 3 bar |
Power supply Los pressure version | 110 V 230 V |
Power supply High pressure version | 230 V |
Protection | IPX4 |
Operating temperature | 16 - 43 °C |
Certifications | CE / EMC |
Boiling General | |
Storage volume boiling | 4 l |
Temperature boiling | 103 °C |
Tap volume boiling | 2.6 l above 98 °C |
Boiling low pressure version | |
Temperature boiling | 99 °C |
Heating time | 16 min |
Heating element | 1200 W |
Boiling high pressure version | |
Temperature boiling | 99 °C |
Heating time | 13 min |
Heating element | 2100 W |
Chilled | |
Storage volume chiller | 2.2 l |
Temperature chilled | 4 - 10 °C adjustable |
Tap volume chilled | 1.7 l below 10 °C |
Cooling capacity | 8 min (∆T = 10K) |
Cooling principle chiller | Direct cooling |
Refrigerant | R290 |
Sparkling | |
Storage volume sparkling | 0.6 l |
Temperature sparkling | 4 - 10 °C adjustable |
Top volume sparkling | 1.2 l below 5 °C |
Cooling principle carbonator | Tank-in-tank setup |
Carbonation sparkling | 5.0 - 5.5 g/l |
CO2 Cartridge | 425 g |
