AQA Fusion All@One

Request more information

The AQA FUSIONE ALL@ONE allows settings and monitoring via app.

  • Set temperature of chilled andboiled water
  • Set volume which flows out of the faucet
  • Display status of CO2 cartridge and filter
  • Define presets for the buttons on the faucet (bottle fill or glass fill)
  • Customized safety functions
Springe zu

Product details

Expe­ri­ence the conve­nience of having filtered cold, hot, sparkling, and boiling water at your finger­tips with our BWT AQA Fusion ALL@ONE and its dedi­cated mixer tap at home, in your office or in your restau­rant or coffee bar.

No more waiting for water to boil to prepare your favourite bever­ages or meals. Our BWT AQA Fusion ALL@ONE is your ulti­mate kitchen companion at home and in your work­place. It is perfect for making tea or coffee, filling up pot to cook paste or other meals, and much more!

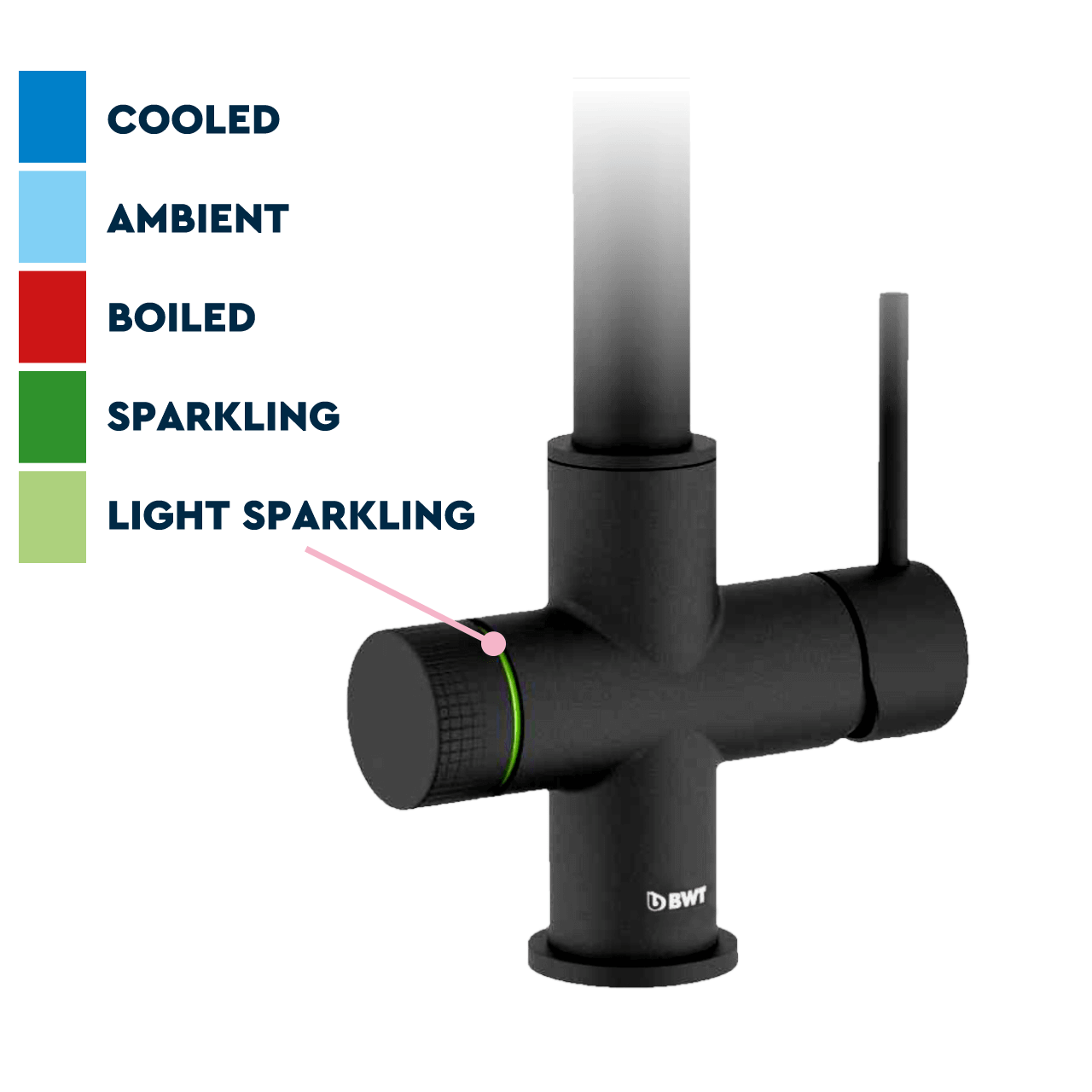

Safety is our top priority, that is why our AQA FUSION mixer tap features various essen­tial safety compo­nents. It includes a child­proof feature, push & turn acti­va­tion and a conve­nient led indi­cator in different colours that shows which type of water is dispensed.

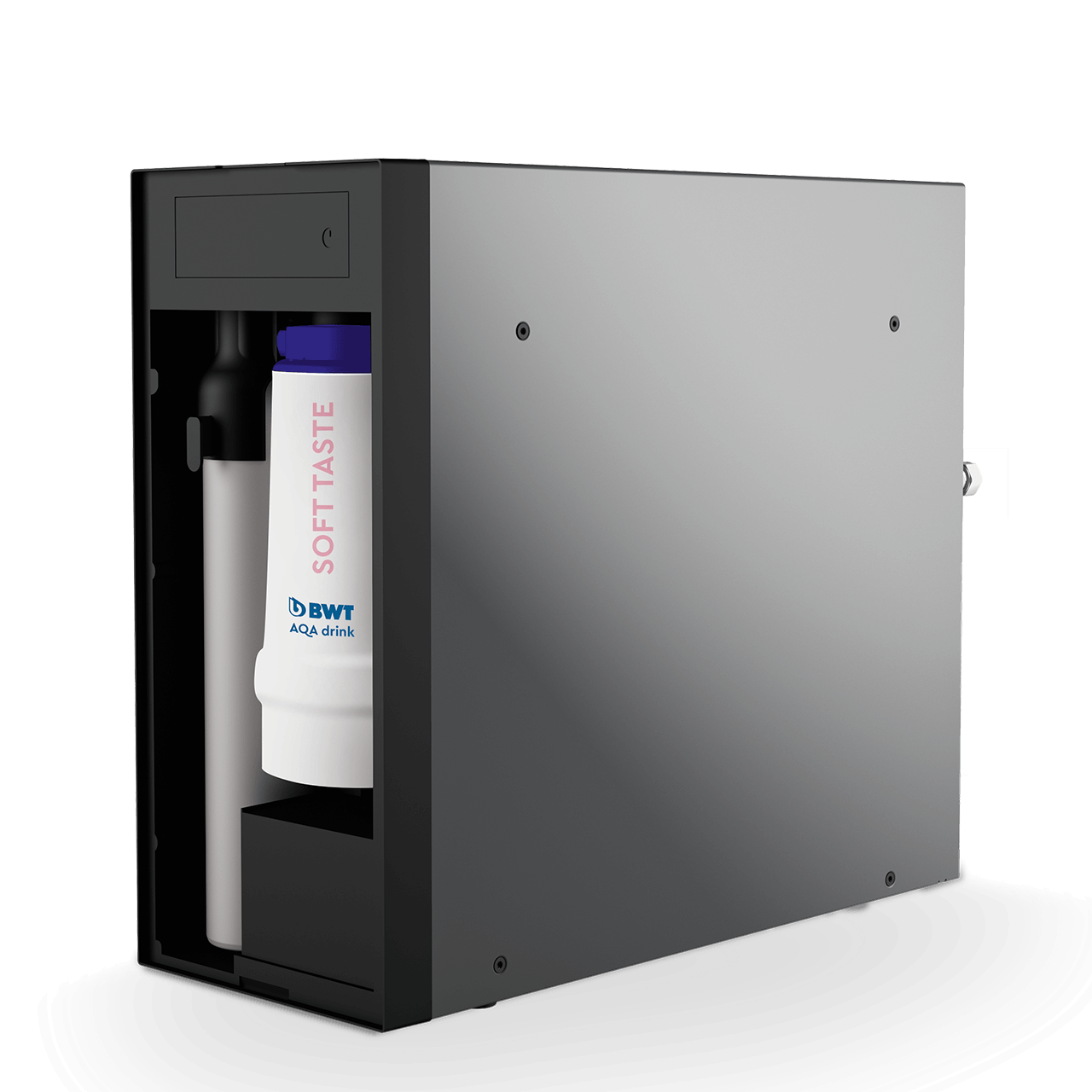

Perfectly filtered and reli­able limescale protec­tion. With the builtin BWT AQA Drink SOFT TASTE refine your tap water in five filtra­tion stages. During this process, parti­cles, heavy metals (such as copper, lead, and nickel), odour and other taste-​disturbing substances (such as chlo­rine) are reduced. This state-​of-the-art filtra­tion is just the prepa­ra­tion phase. The filter will also protect your AQA FUSION ALL@ONE system against limescale deposits. The use of a RFID chip in the filter grants the use of the orig­inal BWT cartridge.



AQA DRINK FILTRA­TION AND MINER­AL­IZA­TION FOR BWT WATER DISPENSERS

All BWT AQA drink filters refine your tap water in five filtra­tion stages. During this process, parti­cles, heavy metals (such as copper, lead and nickel), odour and other taste disturbing substances (such as chlo­rine) are reduced. This state-​of-theart filtra­tion is just the prepa­ra­tion phase.

The real differ­ence is the patented BWT miner­al­iza­tion tech­nology. Local, filtered tap water, enriched by valu­able minerals such as magne­sium and zinc deliver perfect taste and help feel more balanced and resilient to stress. BWT makes tasty, locally-​produced miner­al­ized drinking water. For You and Planet Blue.

Tech­nical Details

Height 440 mm
Width 200 mm
Depth 495 mm
Net weight (empty) 20 kg
Full weight (filled) approx. 27 kg
System working pres­sure 2 - 8 bar
Minimum water pres­sure 1 bar
Maximum water pres­sure 5 bar
Standby loss 14 W
Flow rate (all water flows) 2.0 l/m @ 3 bar
Power supply Los pres­sure version 110 V
230 V
Power supply High pres­sure version 230 V
Protec­tion IPX4
Oper­ating temper­a­ture 16 - 43 °C
Certi­fi­ca­tions CE / EMC

 Boiling General
Storage volume boiling 4 l
Temper­a­ture boiling 103 °C
Tap volume boiling 2.6 l above 98 °C

 Boiling low pres­sure version
Temper­a­ture boiling 99 °C
Heating time 16 min
Heating element 1200 W

Boiling high pres­sure version
Temper­a­ture boiling 99 °C
Heating time 13 min
Heating element 2100 W

Chilled
Storage volume chiller 2.2 l
Temper­a­ture chilled 4 - 10 °C adjustable
Tap volume chilled 1.7 l below 10 °C
Cooling capacity  8 min (∆T = 10K)
Cooling prin­ciple chiller Direct cooling
Refrig­erant R290

Sparkling
Storage volume sparkling 0.6 l
Temper­a­ture sparkling 4 - 10 °C adjustable
Top volume sparkling 1.2 l below 5 °C
Cooling prin­ciple carbon­ator Tank-in-tank setup
Carbon­a­tion sparkling 5.0 - 5.5 g/l
CO2 Cartridge 425 g
